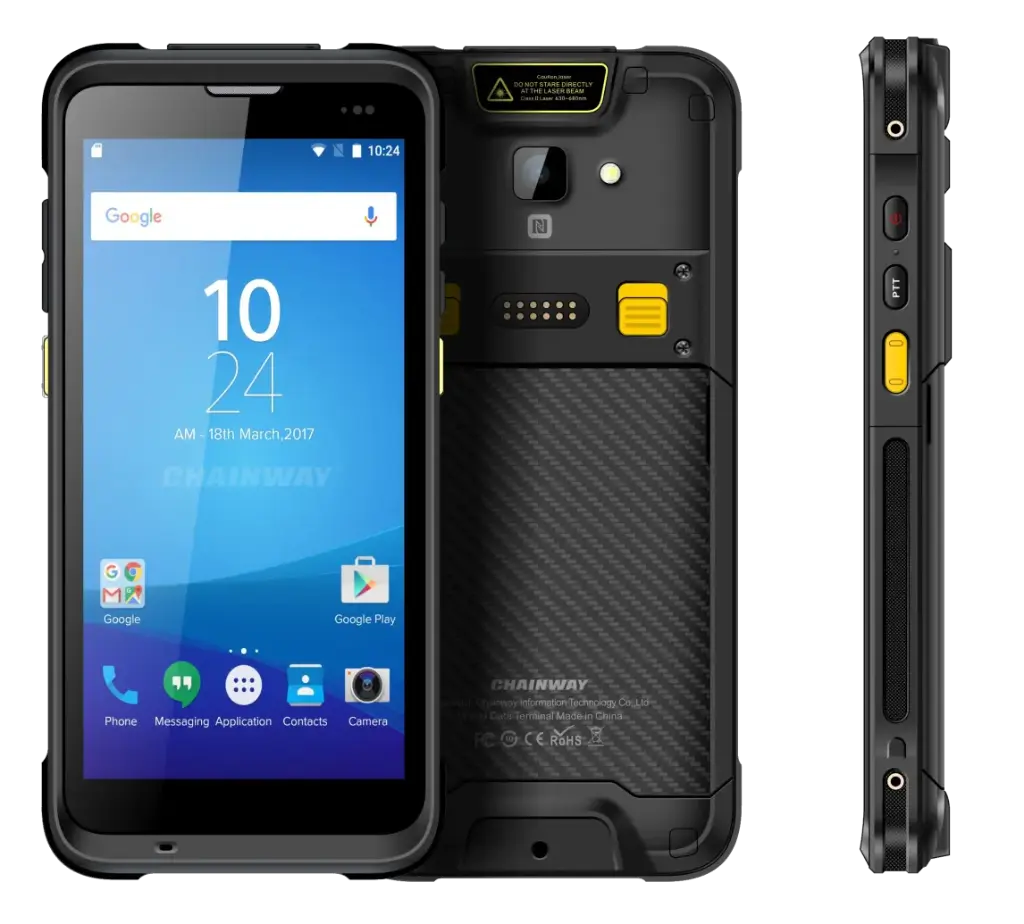

Chainway - C66E

Order the Android 13 HF | NFC – RFID

Looking for a ruggedised HF | NFC – RFID handheld that can go straight into logistics, warehousing, retail, asset management or access control? The Chainway C66 HF | NFC – RFID handheld reader delivers exactly that: a full-feature Android 13 mobile computer with an integrated 13.56 MHz module, a 5.5-inch HD display and a form factor built for multi-shift operation. From the IDCRAFT online shop you receive the device with full distributor support – including configuration advice, accessory selection and integration guidance.

Inside the C66 sits a Qualcomm octa-core processor running at 2.0 GHz, which handles HF | NFC – RFID reads, barcode capture and back-end communication in parallel. The integrated NFC module reaches a read range of 2–4 cm and supports all common HF and NFC protocols, from MIFARE Classic S50 and S70 through CPU cards to standard NFC tags. Connectivity is covered by 4G LTE, Wi-Fi (802.11 a/b/g/n/ac/ax-ready, dual-band 2.4/5 GHz), Bluetooth 5.1 and GPS (including GLONASS, BeiDou, Galileo), so field operations stay online even outside Wi-Fi coverage.

The device is built around a removable 4,420 mAh battery delivering more than 12 hours of continuous use and up to 490 hours of standby. QC3.0 fast charging brings the C66 back to full capacity in 2.5 hours, which keeps shift changes simple without the need for spare devices. The dedicated key layout – one power key, two scan keys and two volume keys – allows one-handed operation, and the multi-touch panel supports gloves and wet hands.

The following part numbers are available in the IDCRAFT online shop – each variant is designed for a specific use case:

• C66E-N-CC8R4A13 – Chainway C66 HF | NFC – RFID handheld in NFC-only configuration with Android 13, 4 GB RAM and 64 GB flash storage. No barcode scanner – the right choice when only HF | NFC – RFID tags and cards have to be captured and no 1D/2D barcode capture is required at the back end.
• C66E-2SE-N-CC8R4A13 – Chainway C66 with Android 13, 4 GB RAM, 64 GB flash and an additional 2D barcode scanner (Zebra SE4710-based). Combines HF | NFC – RFID reading and 2D barcode scanning in a single device – ideal for mixed workflows where both labels and NFC transponders are captured in the same process step.
• C66A-2SE-N-CC8R6A13 – Performance variant with Android 13, 6 GB RAM, 128 GB flash and 2D barcode scanner. Recommended for data-heavy deployments with demanding apps, larger offline databases or MDM platforms such as SOTI MobiControl, where additional memory and storage extend the device lifecycle.

The C66 housing carries an IP65 rating against dust and water jets, survives multiple 1.8 m drops to concrete across the operating temperature range and is certified for 1,000 tumbles from 0.5 m. The operating temperature window of -20 °C to +50 °C makes the device usable in cold-chain, outdoor and production environments. For Chainway C66 price information, current stock levels, volume discounts and matching accessories, contact IDCRAFT directly – your value-added distributor for HF | NFC – RFID hardware.

Technical Highlights

• Supported standards: ISO/IEC 14443 A/B, ISO/IEC 15693, NFC-IP1, NFC-IP2 – full compatibility with existing HF | NFC – RFID infrastructures
• Supported chips: MIFARE Classic (S50, S70), CPU cards and NFC tags – broad coverage of common card and transponder technologies
• Read range 2–4 cm at 13.56 MHz – precise close-range capture without duplicate reads
• Removable 4,420 mAh battery with QC3.0 – more than 12 hours of shift operation per charge
• IP65 protection plus 1.8 m drop resistance – approved for warehouse, outdoor and production deployment

Applications

• Access and personnel control – fast capture of MIFARE and NFC credentials at events, gates and security zones
• Asset tracking in warehouse and workshop – NFC tagging of tools, machinery and inventory items
• Predictive maintenance – capture maintenance and inspection logs directly at the asset tag
• Industrial automation & field service – mobile data access via 4G, Wi-Fi and GPS even beyond Wi-Fi coverage

The Chainway C66 NFC is a well-engineered tool for organisations that want to consolidate Android applications, NFC reading and optional barcode scanning into a single device. With Android 13 including GMS, 90-day security updates, Android Enterprise Recommended status and support for Zero-Touch and SOTI MobiControl, the C66 is ready for modern MDM rollouts. A future upgrade path to Android 18 is committed by the manufacturer, which protects the investment across multiple device generations.

On the software side, the Chainway Software Development Kit is provided on a Java base and can be used inside Eclipse or Android Studio. Existing ERP, WMS or asset management systems can be connected through standard interfaces, so customer-side apps do not have to be rewritten. USB Type-C with USB 3.1 and OTG, a Nano-SIM plus hybrid slot configuration and the extended pogo-pin connector at the bottom of the device ensure that charging cradles and custom accessories integrate without friction.

If you want to order the Chainway C66 online, IDCRAFT provides distributor pricing, short lead times from European stock and direct expert support for selecting the right configuration. For larger rollouts we prepare individual quotes including matching labels, NFC tags and transponders for your specific use case.

Looking to order the Chainway C66 HF | NFC – RFID Handheld Reader or need a custom quote for larger quantities? Contact IDCRAFT GmbH – your Value Added Distributor for HF | NFC – RFID hardware.
