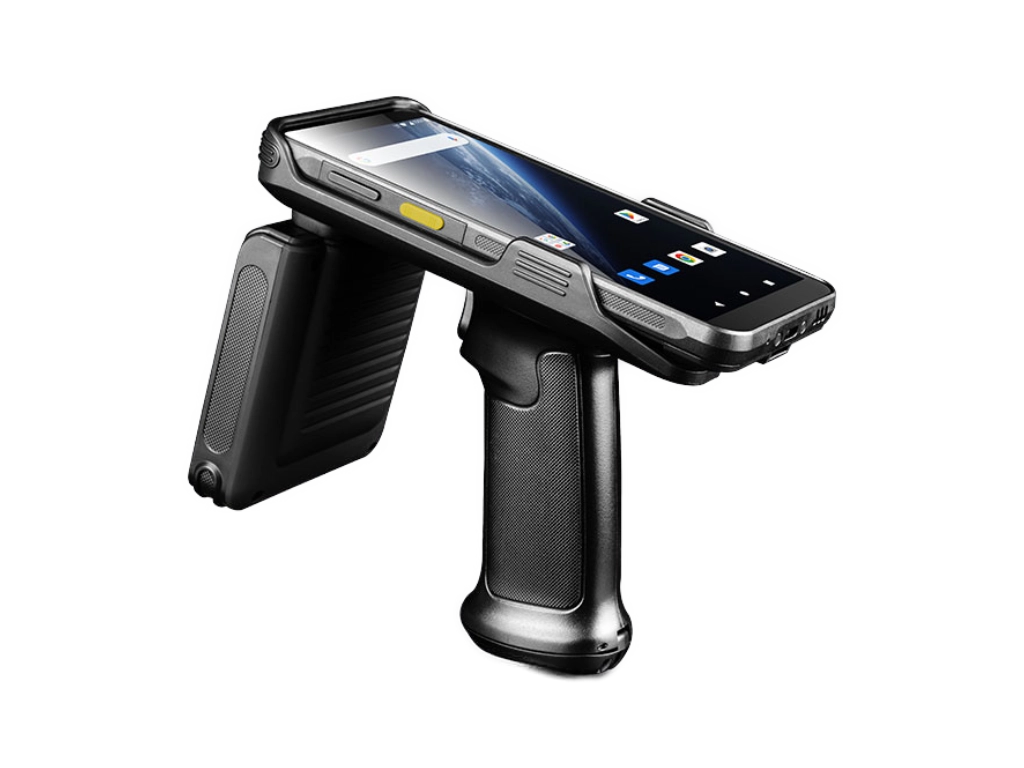

Chainway - MC51E incl. UHF Handle

High-performance RFID in a pistol grip - Android 14, 5G and IP67

The Chainway MC51 UHF GUN is supplied as a complete, ready-to-deploy UHF | RAIN - RFID handheld bundle: industrial mobile computer plus snap-on pistol grip in a single order. The kit is aimed at operators in warehousing, logistics, retail, maintenance, asset tracking and the defence sector who need a rugged Auto-ID device with Android 14, 5G connectivity and a high-output UHF engine. The MC51 docks onto existing WMS, ERP and inventory backends and replaces several single-purpose devices with one integrated platform for RFID, barcode and NFC.

The reader engine is built around the Chainway CM710-1 module with Impinj E710 chipset and supports Impinj Gen2X. Combined with the 4.0 dBi circular polarised antenna and 30 dBm transmit power, the device achieves a maximum read range of up to 30 m (Alien H3 Anti-Metal tag) and a sustained read rate of more than 1,300 tags per second. This makes the MC51 UHF GUN well suited to high-density stocktakes in fully loaded warehouses and to fast goods-in posting at busy dock doors.

The RB-C50-UPS pistol grip is included with both bundles and ships with a separate pistol battery. The device base provides 12 contact pins on the rear, allowing the grip to dock securely onto the MC51 without an external cable. Operation is handled via two dedicated scan triggers, a programmable multifunction key and the 6-inch HD touch panel (1,440 x 720) behind Corning Gorilla Glass - usable with gloves or wet hands.

The following part numbers are available in the IDCRAFT online shop - each variant is designed for a specific use case:

• MC51E-2SE-N-CC8R4A14 + RB-C50-UPS - Chainway MC51 UHF GUN bundle in the EU configuration with 4 GB RAM and 64 GB Flash, Qualcomm Octa-Core 2.4 GHz, 6-inch 1,440 x 720 display, Bluetooth 5.2, Wi-Fi 6E (802.11 a/b/g/n/ac/ax-6E), NFC, Zebra SE4710 2D scanner, 16 MP rear camera with autofocus, 5,000 mAh main battery, Micro-SD slot and optional eSIM. The cost-effective entry configuration for standard stocktakes and retail use cases with moderate data volumes.
• MC51E-2SE-N-CC8R8A14 + RB-C50-UPS - Same hardware platform as above, upgraded to 8 GB RAM and 256 GB Flash. This configuration is the right choice for data-heavy applications such as large asset databases, offline inventories with extensive tag lists or apps with high storage demands. Both bundles include the RB-C50-UPS pistol grip and pistol battery.

Both configurations are sealed to IP67 against dust and temporary immersion, withstand 1.5 m drops to concrete across the operating temperature range and pass 1,000 tumbles from 0.5 m. To get the latest Chainway MC51 UHF GUN price, current stock levels, volume tiers and project-specific quotes, contact IDCRAFT directly - your value added distributor for UHF | RAIN - RFID hardware in Europe.

Technical Highlights

• ISO/IEC 18000-6C, EPC Class1 Gen2, ISO 14443 A/B, ISO 15693, NFC-IP1/IP2 - broad standards coverage for UHF and HF | NFC - RFID
• Supported chips & tags: Impinj M750, Impinj MR6, Alien H3, MIFARE Classic (S50/S70), CPU card, NTAG NFC tags
• Read range up to 30 m UHF and 2-4 cm HF | NFC - combined capture in a single reader
• IP67 + 1.5 m drop + 1,000 x 0.5 m tumble - built for warehouse and outdoor environments
• Android 14, 5G, Wi-Fi 6E, Bluetooth 5.2, GPS - future-proof connectivity for enterprise rollouts

Applications

• Inventory and stock control in distribution centres - fast bulk capture for full-pallet reads
• Store and retail logistics - integrated barcode scanner plus UHF handheld in one device
• Asset tracking in industry and maintenance - rugged IP67 housing for workshop and outdoor use
• Defence and critical infrastructure - ESD ratings, hot-swap battery, long device lifecycles

The Chainway MC51 UHF GUN is built as a long-life industrial platform that consolidates UHF | RAIN - RFID, HF | NFC - RFID and 1D/2D barcode scanning into one form factor. Customers who order the MC51 UHF GUN online receive more than the hardware itself: the device is supported by the Chainway Software Development Kit (Java, Eclipse, Android Studio), making integration into custom apps and existing backend systems straightforward.Contact IDCRAFT GmbH - your Value Added Distributor for UHF | RAIN - RFID hardware.

The 5,000 mAh main battery with QC3.0 fast charging, Battery Management System and hot-swap capability, combined with the additional pistol battery in the RB-C50-UPS grip, keeps the device running through full multi-shift deployments. SIM and TF card slots plus optional eSIM allow parallel cellular and storage expansion - well suited to mobile field scenarios without reliable Wi-Fi.

When you buy the Chainway MC51 UHF GUN at IDCRAFT, you benefit from upfront technical advice on frequency region, tag selection and matching transponders, from short delivery times out of European stock and from structured rollout support for medium and large volumes. Both bundle variants can be ordered directly; for larger projects, our sales team is happy to prepare an individual quote covering accessories, protective cases, charging cradles and matching UHF tags.

Looking to order the Chainway MC51 UHF GUN or need a custom quote for larger quantities? Contact IDCRAFT GmbH - your Value Added Distributor for UHF | RAIN - RFID hardware.
