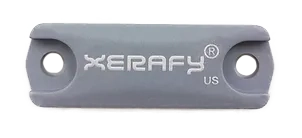

Xerafy - MICRO Power

Mini tag with Impinj M750 – RFID built for power tools and rental fleets

Tools, mobile equipment and rental fleets pass through countless handover points between workshop, jobsite and warehouse every day – and they do not always come back. The Xerafy MICRO Power X3130-EU101-M750 is a UHF RFID hard tag whose compact form factor was developed specifically for direct labelling of power tools, pneumatic devices, construction equipment and audio/video gear. At just 32 x 10.80 x 6 mm and a weight of only 3 g, the tag fits where even the Medical variant would already be too large – on battery slots, tool casings or right on the device handle.

Inside, the Impinj M750 IC delivers 96-bit TID, 96-bit EPC and 32-bit user memory. The M750 is one of the most modern UHF RFID ICs on the market and provides particularly fast, accurate capture – ideal for gate reads at tool cribs, automated stocktakes in rental stations and quick scans over conveyors. In the EU 865–868 MHz band, the tag reaches up to 4 m read range on metal, which is more than enough for the typical read distances at tool cabinets, dispensing gates and storage shelves.

The MICRO Power differs from the larger variants in the series not only in its mini format, but above all in its construction principle: industry-grade polymer combined with a 316L stainless steel insert and an additional silicone seal makes the tag resistant to vibration, shock and the typical loads of tool-based use. The IP68 protection rating, 1,250 kPa compression strength and a survival temperature range of −40 °C to +150 °C round out the profile.

The following part number is available in the IDCRAFT online shop – this variant is designed for a specific use case:

• X3130-EU101-M750 – Xerafy MICRO Power in the EU configuration for 865–868 MHz, equipped with Impinj M750 IC, 96-bit EPC and 32-bit user memory. Mini form factor 32 x 10.80 x 6 mm at 3 g, IP68 rated, survival temperature up to +150 °C, 1,250 kPa compression strength. Industry-grade polymer housing with 316L stainless steel insert and silicone seal, attachment via M3 pop rivets, M3 screws, cable ties or industrial adhesive. The right pick for European tool management operations, rental stations and industrial equipment fleets that need to identify small devices and mobile equipment pools clearly.

Compared to the larger tags in the series, the central difference lies in the size-to-performance ratio: this tag brings UHF | RAIN – RFID performance to a device mounting area that was previously almost exclusively the domain of HF/NFC tags. That makes mid-range capture at gates and doorways viable in the first place, without redesigning the tool body. To get the Xerafy MICRO Power price, current stock levels and volume tier conditions, contact IDCRAFT directly – your value-added distributor for UHF | RAIN – RFID hardware

Technical Highlights

• EPC Gen2 / ISO/IEC 18000-63 compliant – works with all common UHF RFID readers and reader platforms
• Impinj M750 IC with 96-bit EPC and 32-bit user memory – fast capture for high-throughput scenarios
• Up to 4 m read range on metal – sufficient for tool cabinets, dispensing gates and storage shelves
• Mini form factor 32 x 10.80 x 6 mm at just 3 g – attachable even to the smallest devices
• IP68 rating, survival up to +150 °C, 1,250 kPa compression, silicone seal with 316L stainless steel insert

Applications

• Tool management in tooling shops – RFID tracking of cordless, pneumatic and electric tools
• Automotive post-paint processes – compact identification of assembly tools after coating
• Construction tools and jobsite equipment – rugged tag attachment despite shocks and vibration
• Rental fleet and equipment hire management – end-to-end traceability of audio/video and event gear

The Xerafy MICRO Power closes a gap that has long been open in the UHF | RAIN – RFID space: a tag small enough for hand tools, yet still delivering stable on-metal performance, an IP68 rating and the capture speed of the M750 IC. While the Industrial and Paint Shop variants of the series target skid and carrier mounting and the MICRO Medical is optimised for instruments, this variant covers exactly the segment of mobile tools and devices.

Thanks to its EPC Gen2 compliance, the tag integrates seamlessly into existing UHF | RAIN – RFID infrastructures. It works reliably with fixed readers at tool dispensing gates, tunnel antennas above conveyor trolleys and mobile handheld scanners. The mounting method can be adapted to each device shape: M3 pop rivets and M3 screws for permanent installation, cable ties for tool-free attachment or industrial adhesive for smooth housing surfaces.

Order the Xerafy MICRO Power X3130-EU101-M750 directly from IDCRAFT and benefit from upfront technical consultancy for your tool and equipment identification setup, sample service for pre-tests at your own rental station or tool crib and short delivery times within the EU. On request, we also provide custom pre-encoding, project-specific encoding services and tiered pricing for larger volumes.

Looking to order the Xerafy MICRO Power X3130-EU101-M750 or need a custom quote for larger quantities? Contact IDCRAFT GmbH – your Value Added Distributor for UHF | RAIN – RFID hardware.
