Xerafy - PICO Mini Series

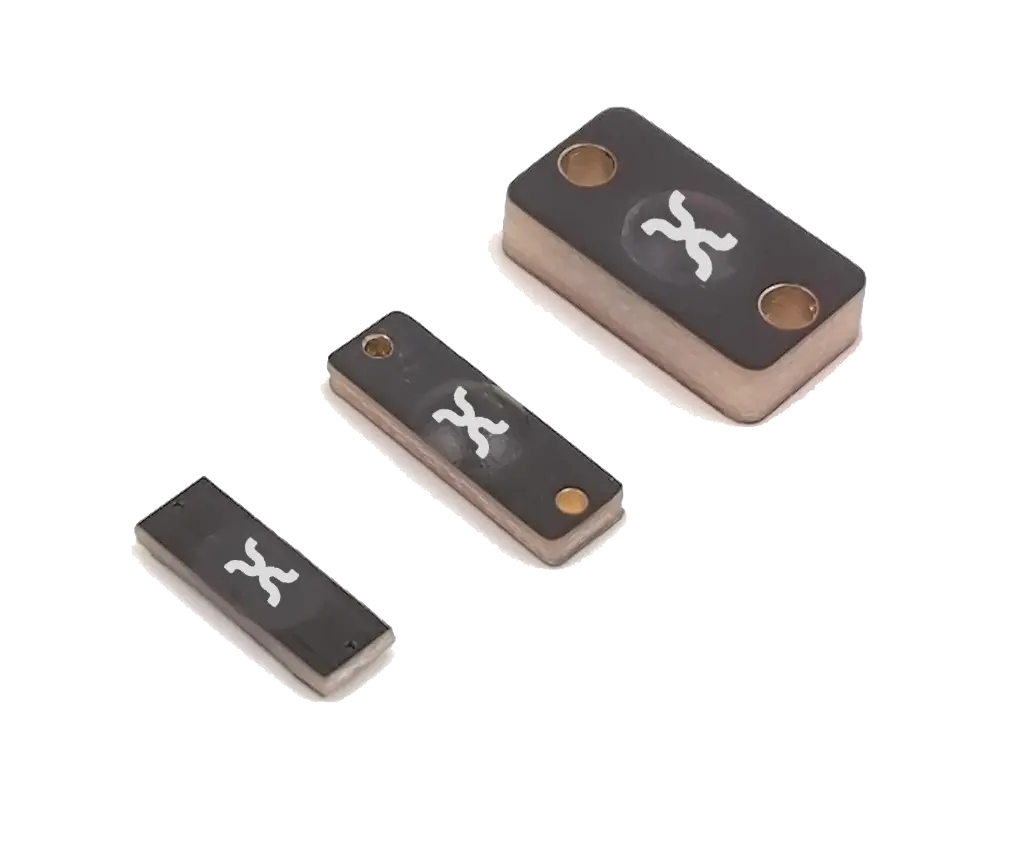

Three sizes, one concept – micro RFID for tools, parts and equipment

The Xerafy PICO Mini line delivers a coherent UHF RFID hard tag family for applications where classic industrial tags simply do not fit any longer. The three variants PICO Mini 100, PICO Mini 150 and PICO Mini 300 cover form factors ranging from just 10 mm to 13 mm in length while still providing UHF | RAIN – RFID performance that would have been unthinkable in this size class only a few years ago. Whether you need to label small tools, narrow components, electronic parts or safety-critical equipment, this line offers the right read range for each use case.

All three variants are powered by the NXP UCODE 8 IC with 96-bit TID and 128-bit EPC. The UCODE 8 is a proven industrial chip that combines high sensitivity with strong write performance – both essential for micro tags whose antenna footprint is inherently minimal. In the EU 865–868 MHz band, the three variants cover staggered read distances: the Mini 100 delivers up to 0.5 m, the Mini 150 up to 3 m and the Mini 300 up to 4 m read range on metal. That lets you pick exactly the right variant for each read geometry – from near-field scans at a tool cabinet to gate readers at a tool dispensing point.

All three variants are built on an FR4 PCB carrier with epoxy potting, which delivers mechanical robustness, chemical resistance and electrical stability. Operational and survival temperature are uniformly −40 °C to +85 °C, and compression strength sits at 1,200 kPa. The Mini 100 and Mini 150 carry an IP69K rating and are therefore approved for high-pressure hot-water cleaning, while the Mini 300 is IP68 rated.

The following part numbers are available in the IDCRAFT online shop – each variant is designed for a specific use case:

• X1035-EUP00-U8 – Xerafy PICO Mini 100 in the EU configuration for 865–868 MHz with NXP UCODE 8. Micro form factor 10 x 3.50 x 1 mm at just 0.10 g, IP69K rated. Read range up to 0.5 m on metal. The choice for near-field identification of the smallest tools, weapon parts or electronic components where intentional avoidance of cross-reads on neighbouring tags is critical.
• X1204-EUP00-U8 – Xerafy PICO Mini 150 in the EU configuration for 865–868 MHz with NXP UCODE 8. Form factor 12 x 4 x 1.50 mm at 0.20 g, IP69K rated. Read range up to 3 m on metal. The mid-range option – ideal for tool dispensing, tool cribs and inventory scans where multiple metres of read distance are required.
• X1307-EUP00-U8 – Xerafy PICO Mini 300 in the EU configuration for 865–868 MHz with NXP UCODE 8. Form factor 13 x 7 x 3 mm at 0.70 g, IP68 rated. Read range up to 4 m on metal. The longest-range variant in the line for gate reads, doorway capture and larger storage shelves.

The three variants are designed to complement each other: from tight near-field scans through mid-range tool dispensing up to gate-level capture, the Mini line covers all typical deployment distances. To get the Xerafy PICO Mini price, current stock levels and volume tier conditions, contact IDCRAFT directly – your value-added distributor for UHF | RAIN – RFID hardware.

Technical Highlights

• EPC Gen2 / ISO/IEC 18000-63 compliant – works with all common UHF RFID readers and reader platforms
• NXP UCODE 8 IC with 96-bit TID and 128-bit EPC – industry-standard chip with high sensitivity
• Read ranges of 0.5 m / 3 m / 4 m on metal – scalable to fit each read geometry
• IP69K (Mini 100 & 150) or IP68 (Mini 300) protection rating, 1,200 kPa compression strength
• FR4 PCB material with epoxy potting, attachment via industrial adhesive

Applications

• Tool tracking in aerospace, rail, nuclear and oil & gas – RFID identification even on the smallest hand tools
• Defense and weapon management – controlled capture of safety-critical components
• Oilfield equipment – durable tag attachment on parts in harsh environments
• Data centres and IT asset tracking – RFID on servers, network components and cable management

The PICO Mini line provides the flexibility to roll out a consistent RFID strategy across different asset sizes. Instead of mixing manufacturers, form factor concepts and IC platforms for each use case, you get the same NXP UCODE 8 chip, the same PCB-based construction and the same mounting principle across all three variants – which significantly simplifies encoding, middleware configuration and logistics.

Thanks to their EPC Gen2 compliance, all three tags integrate seamlessly into existing UHF | RAIN – RFID infrastructures. They work reliably with fixed readers at tool dispensing points, near-field antennas at tool cribs and mobile handheld scanners. There is no need to swap reader hardware or rework middleware – you simply pick the variant with the read range that matches your read geometry.

Order the Xerafy PICO Mini 100, 150 or 300 directly from IDCRAFT and benefit from upfront technical consultancy on variant selection, sample service for pre-tests on your own assets and short delivery times within the EU. On request, we also provide custom pre-encoding, project-specific encoding services and tiered pricing for larger volumes.

Sie möchten die Xerafy PICO Mini Reihe bestellen oder benötigen ein individuelles Angebot für größere Stückzahlen? Kontaktieren Sie die IDCRAFT GmbH – Ihr Value Added Distributor für UHF | RAIN – RFID Hardware.
