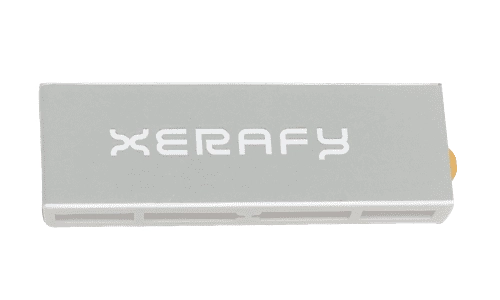

Xerafy - Versa TRAK

Up to 9 m read range at just 3 g – RFID for pallets, RTI pools and storage racks

When pallets, reusable containers and rack positions need to be captured reliably across several metres, read range is the decisive criterion. The Xerafy Versa TRAK X0350-GL011-M750 delivers the top value across the entire TRAK line in exactly this discipline: up to 9 m on metal. This variant was specifically engineered for returnable transport item (RTI) management, pallet logistics and storage rack identification – application areas where gate readers, tunnel antennas above conveyors and forklift-mounted readers operate across medium to long distances. If you operate a UHF | RAIN – RFID reader in a distribution centre, at goods receipt or on rack labels, the Versa TRAK is the right pick within the TRAK line.

Inside, the Impinj M750 IC delivers 96-bit TID, 96-bit EPC and 32-bit user memory. The M750 is one of the most modern UHF ICs on the market and provides particularly fast, accurate capture – an advantage that translates directly into higher read rates at gate reads with high tag throughput, sorting facilities and pallet-scan scenarios. In the global 860–960 MHz band, the tag reaches the stated 9 m on metal and up to 3 m off metal – values that clearly position it as the long-range variant within the TRAK line.

Measuring 50.30 x 17 x 5.30 mm and weighing just 3 g, the Versa TRAK is remarkably light for its read range. The industry-grade polymer housing delivers mechanical stability for permanent deployment on pallets and containers, which face constant impacts, vibration and weather exposure in logistics environments.

The following part number is available in the IDCRAFT online shop – this variant is designed for a specific use case:

• X0350-GL011-M750 – Xerafy Versa TRAK in the global configuration for 860–960 MHz with Impinj M750 IC, 96-bit EPC and 32-bit user memory. Form factor 50.30 x 17 x 5.30 mm at 3 g, industry-grade polymer housing, IP68 rated, operational and survival temperature −40 °C to +85 °C, 180 kPa compression strength. Read range up to 9 m on metal and 3 m off metal, attachment via industrial adhesive, cable ties available as an option. The right pick for European and internationally operating users in returnable transport items (RTI), pallet logistics, distribution centres and storage rack identification in high-bay warehouses and cross-docking hubs.

The key difference compared to the other TRAK variants lies in the read-range lead: at 9 m on metal, the Versa TRAK roughly triples the read distance of most other TRAK models (Data TRAK II, Global TRAK and Slim TRAK sit around 2–2.5 m). That makes it the choice for applications where gate reads, tunnel capture and forklift-based inventory are the central capture processes – not rack-side audits or reusable container tracking in tight spaces. To get the Xerafy Versa TRAK price, current stock levels and volume tier conditions, contact IDCRAFT directly – your value-added distributor for UHF | RAIN – RFID hardware.

Technical Highlights

• EPC Gen2 / ISO/IEC 18000-63 compliant – works with all common UHF RFID readers and reader platforms
• Impinj M750 IC with 96-bit EPC and high sensitivity – fast capture at gate reads with high tag throughput
• Up to 9 m read range on metal and 3 m off metal – longest read range within the TRAK line
• Global 860–960 MHz band – the same tag for rollouts in Europe, the USA, Asia and Latin America
• Industry-grade polymer housing 50.30 x 17 x 5.30 mm at just 3 g, IP68 rated, attached via industrial adhesive or cable ties

Applications

• Returnable transport items (RTI) – dense-tag capture of reusable packaging and container pools
• Pallet logistics – gate reads at goods receipt, dispatch and cross-docking points
• Storage rack identification – tag attachment on rack positions in high-bay warehouses
• Distribution centres – dense-tag capture at sorting facilities and conveyor lines

The Versa TRAK is the variant within the TRAK line that explicitly targets maximum read range at minimum weight. While the Data TRAK II focuses on stationary IT asset management, the Global TRAK on intercontinental supply chains and the Slim TRAK on ultra-thin form factor, the Versa TRAK covers the long-range segment – exactly the profile required in classic pallet logistics and RTI management.

Thanks to its EPC Gen2 compliance, the tag integrates seamlessly into existing UHF | RAIN – RFID infrastructures. It works reliably with fixed readers at goods receipt and dispatch gates, tunnel antennas above sorting facilities and forklift-mounted as well as mobile handheld scanners. There is no need to swap reader hardware or rework middleware – and the global 860–960 MHz band simplifies international distribution rollouts.

Order the Xerafy Versa TRAK X0350-GL011-M750 directly from IDCRAFT and benefit from upfront technical consultancy on your pallet logistics or RTI identification setup, sample service for pre-tests on your own containers and short delivery times within the EU. On request, we also provide custom pre-encoding, project-specific encoding services and tiered pricing for larger volumes.

Looking to order the Xerafy Versa TRAK X0350-GL011-M750 or need a custom quote for larger quantities? Contact IDCRAFT GmbH – your Value Added Distributor for UHF | RAIN – RFID hardware.
